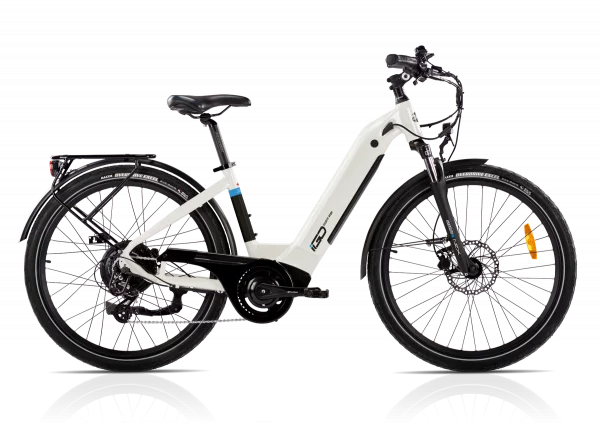

DISCOVERY – BERRI

$2,999.99

A cross-platform step through e-bike built on 26” wheels that inspires fun and confidence with every pedal stroke. The Berri is ideal for riders of smaller stature or those looking for a nimbler road behaviour.

  • The ERGOFIT philosophy – our tool-less adjustable cockpit and new, more stable geometry makes for a true “one-bike-fits-all” experience with any drawbacks.
  • A reconceptualized, lower step-through design makes it a breeze to mount and dismount without affecting the performance or rigidity of the frame.

Category:

Description

500W REAR HUB MOTOR

Powered by our robust 500 watt brushless geared motor, your iGO will be able to master any hill, traffic jam or Sunday ride. Mated with our innovative iGO Drive Connect App, users can customize rider profiles and style while making the most out of every outing.

IGO CONNECT

Set your own custom riding profiles (or select from the pre-installed configurations) using the iGO Connect App.
Engage ‘off road mode’ to open up the top speed to 45km/h (where permitted). The iGO Connect App allows for real insight and true customization of your ride .

672 WH REMOVABLE BATTERY

Thanks to our fully integrated and removable Lithium-Ion batteries, you’ll be able to ride for hours while retaining the stylish appeal of the bike. Batteries are powered by state-of-the-art high capacity cells. Integrated technologies allow for essential stats like range and charge cycles to be monitored.

DISCOVERY – BERRI

• 500W Geared Rear Hub Drive
• Battery 48 Volt / 672Wh
• Range 90 km/(56mi)

SPECIFICATIONS

FRAMESET ELECTRIC TECHNOLOGY
FRAME Hydroformed 6061 Aluminum 26” step through ERGOFIT frame with smooth welds. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock. iGO CONNECT Mobile App (Android and iOS)
Customizable profile and performance settings with full diagnostic monitoring and alerts – Bluetooth connectivity
COLOUR Gloss White with Process Blue accents DISPLAY UNIT TFT Color Backlit, Main Power, Vibration Feedback Buttons, Diagnostic, Battery Status, Light Switch, Pedal Assist Level Selector, Walk Assist Control, Speedometer/Max Speed/Avg Speed, Odometer, Trip Timer
FORK SUNTOUR NEX 26”  63 mm travel MOTOR 500 Watt  geared rear hub
DRIVETRAIN TORQUE up to 53 Nm
SHIFTERS SHIMANO ALTUS 8-speed Rapidfire trigger shift CONTROLLER 48 Volt high power density sine wave, MOSFET based up to 70 Amp, Bluetooth
CHAINRINGS PROWHEEL 42T BATTERY TYPE SAMSUNG integrated removable lithium battery with security lock
CHAIN KMC Z8 BATTERY VOLTAGE (V) 48 Volt
REAR DERAILLEUR SHIMANO ALTUS 8-speed BATTERY (AH) 14 Ah
CASSETTE 8-speed 11-32T BATTERY CAPACITY (WH) 672 Watt-hours
COMPONENTS RANGE 90 km (56mi)
HANDLEBAR Alloy ERGOFIT touring bar POWER ASSIST 9 Levels of power assisted pedaling
GRIPS VELO double density, anatomic design, open end (135mm) THROTTLE Any time on demand thumb throttle
STEM Toolless, multi adjustable SENSOR Electronic 32 pulse Cadence Sensor integrated into the bottom bracket
SEATPOST Alloy 31.6mm with quick release CLASS Class2 / Class1 / Class3 where permitted max speed 45km/h
SADDLE VELO for iGO BATTERY CHARGER 110/220V Smart charger, LED status, CUL, 2A
BRAKE LEVERS TEKTRO with Sensor Control Design and reach adjustment OTHER
BRAKE CALIPERS TEKTRO hydraulic disc ACCESSORIES (INCLUDED) Front BUCHEL Shiny 50 lux LED Light (powered by main battery), Rear BUCHEL Edge LED Light (powered by main battery), Front & Rear Alloy Fenders, Integrated Alloy Rear Cargo Rack, Rear Bungee Straps, Chain Guard, Water Bottle Boss on Seat Tube, Kickstand, Tool Kit, Battery Charger
ROTORS 180 mm BIKE WEIGHT 24.0 kg (53.0lbs)
WHEELS BATTERY WEIGHT 3.1 kg (6.8lbs)
TIRES MAXXIS Overdrive Excel 26”x2.0” with SilkShield bead-to-bead puncture protection, reflective sidewall WEIGHT CAPACITY 114 kg (250lbs)
RIMS ALEX DP25 26” – black alloy



DOCUMENTATION

DiscoveryBerri_FullSpecs.pdf
